Self-Locking Wire UL Nylon Electrical Wiring Accessories PA66 Cable
Ties 3.6 X 200 mm
Specifications:
1. Type: Self-Locking
2. Material: Nylon, Nylon 66 94V-2 certificated by UL
3. Color: White, UV Black,Colorful
4. Feature: Acid, erosion resistant, good insulation and not apt to
age
5. Width: 2.5mm-15mm
6. Length: 60mm-1300mm
7. Tensile strength: 18LBS-200LBS
Description:
1. Name: Nylon Cable Ties Sizes 3.6x200mm
2. Item: Self-locking cable ties
3. Material: Nylon 66 ,94-2V certificated by UL
4. Feature: Heat-resisting, Acid and erosion control, Insulate well
and not apt age
5. Operation temperature: -40-85 0c
6. Colour: Natural (White and standard colour), UV Black and other
colours are available
7. Certificates: UL, ROHS, SGS, UKAS, CE, EN50146, ISO9001:2000,
ISO14001
8. Usage of cable tie: Insert the tie through the head hole and
then draw it tight

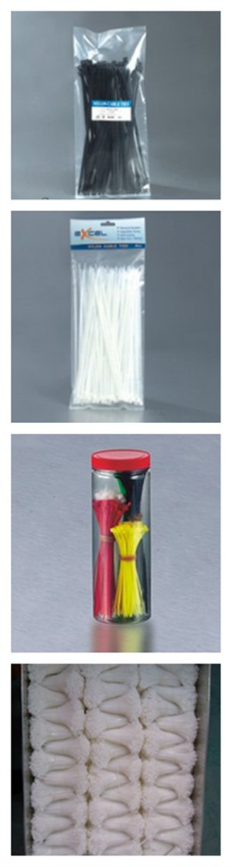

9. Package: Polybag ( or Header Card or Blister Card or Plastic
cylinder or others) + label + outer box
10. Other items: Mountable cable ties, Double locking cable ties,
Knot cable ties and so on
Specialized Manufacturer of Cable tie:
Item No. | Length | Width | Max Bundle Dia | Tensile Strength |
Inch | mm | mm | LBS | KGS |
2.5×80 | 3 | 80 | 2.5 | 2-16 | 18 | 8 |
2.5×100 | 4 | 100 | 2.5 | 2-22 | 18 | 8 |
2.5×120 | 5 | 120 | 2.5 | 2-30 | 18 | 8 |
2.5×150 | 6 | 150 | 2.5 | 2-35 | 18 | 8 |
2.5×200 | 8 | 200 | 2.5 | 2-50 | 18 | 8 |
3.6×100 | 4 | 100 | 3.6 | 3-22 | 40 | 18 |
3.6×150 | 6 | 150 | 3.6 | 3-35 | 40 | 18 |
3.6×200 | 8 | 200 | 3.6 | 3-42 | 40 | 18 |
3.6×250 | 8 | 250 | 3.6 | 3-50 | 40 | 18 |
3.6×300 | 10 | 300 | 3.6 | 3-65 | 40 | 18 |
4.8×150 | 6 | 150 | 4.8 | 3-35 | 50 | 22 |
4.8×200 | 8 | 200 | 4.8 | 3-50 | 50 | 22 |
4.8×250 | 10 | 250 | 4.8 | 3-65 | 50 | 22 |
4.8×300 | 12 | 300 | 4.8 | 3-82 | 50 | 22 |
4.8×350 | 14 | 350 | 4.8 | 3-100 | 50 | 22 |
4.8×370 | 15 | 370 | 4.8 | 3-102 | 50 | 22 |
4.8×400 | 16 | 400 | 4.8 | 3-105 | 50 | 22 |
4.8×450 | 18 | 450 | 4.8 | 3-130 | 50 | 22 |
4.8×500 | 20 | 500 | 4.8 | 3-150 | 50 | 22 |
7.2×200 | 8 | 200 | 7.2 | 3-50 | 120 | 55 |
7.2×300 | 12 | 300 | 7.2 | 4-80 | 120 | 55 |
7.2×400 | 16 | 400 | 7.2 | 4-105 | 120 | 55 |
7.6×250 | 10 | 250 | 7.6 | 4-70 | 85 | 38 |
7.6×300 | 12 | 300 | 7.6 | 4-82 | 120 | 55 |
7.6×350 | 14 | 350 | 7.6 | 4-90 | 120 | 55 |
7.6×380 | 15 | 380 | 7.6 | 4-98 | 120 | 55 |
7.6×400 | 16 | 400 | 7.6 | 4-105 | 120 | 55 |
7.6×450 | 18 | 450 | 7.6 | 4-118 | 120 | 55 |
7.6×500 | 20 | 500 | 7.6 | 4-150 | 120 | 55 |
9.0×400 | 16 | 400 | 9 | 4-105 | 175 | 80 |
9.0×450 | 18 | 450 | 9 | 4-118 | 175 | 80 |
9.0×500 | 20 | 500 | 9 | 4-150 | 175 | 80 |
9.0×550 | 22 | 550 | 9 | 8-160 | 175 | 80 |
9.0×600 | 24 | 600 | 9 | 8-180 | 175 | 80 |
9.0×650 | 26 | 650 | 9 | 8-190 | 175 | 80 |
9.0×720 | 28 | 720 | 9 | 10-205 | 175 | 80 |
9.0×760 | 30 | 760 | 9 | 10-225 | 175 | 80 |
9.0×800 | 32 | 800 | 9 | 10-240 | 175 | 80 |
9.0×920 | 36 | 920 | 9 | 10-255 | 175 | 80 |
9.0×1020 | 41 | 1020 | 9 | 10-295 | 175 | 80 |
9.0×1200 | 48 | 1200 | 9 | 10-340 | 175 | 80 |
Application:
1. Red, yellow, blue, green nylon cable ties are most commonly used
distribution box,
distribution cabinets and warning label bundled fixed.
2. different colors with nylon cable ties of different colors of
fruits and vegetables, exports of
clothing packaging products fixed.
3. children's toys of different colors fixed and installation
accessories, children's outdoor play
equipment color soft foam package fixed.
4. more black nylon cable ties used in advertising company, outdoor
activities arena and other places, is a capable assistant.
Competitive Advantage:
1. Professional design team provide special design for ur cable and
unique design for both opp bag and carton box.
2. Experienced workers and QC team ensure high quality and 100%
testing before shipment, and no NG PARTS outflowed.
3. Large-scale production capacity and competitive price promise
timely delivery and advantageous position in the market.
Shipping Details:
1. By air
Your order will be delivered by DHL, FEDEX, UPS, TNT, or other
International Express. It's up to you to choose your suitable
express company. It normally takes 3-7 days to arrive at your
destination. Surcharge will be charged if your destination is
remote area.
2. By sea
Shipments will be operated under FOB conditions.
