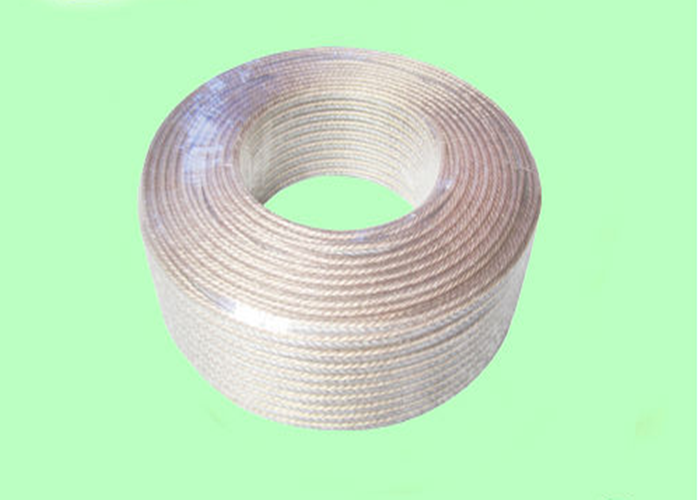

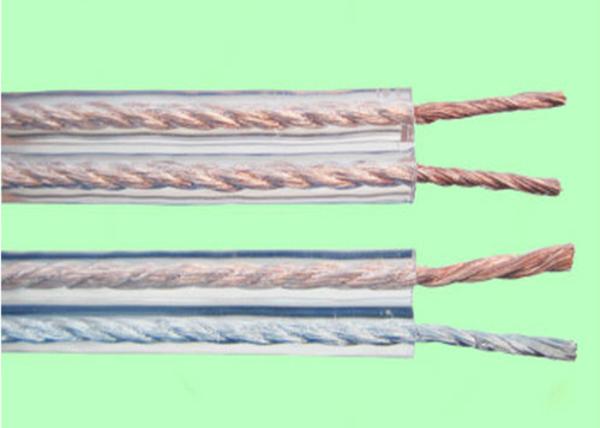

2 Conductor Flexibility Speaker Wire Cable PVC 12 GA Gauge AWG
Transparent Copper / CCA
Specification:
1. Cable size 2 x 4mm squared
2. Conductor type - oxygen free copper Clad CCA
3. Polarisation - Blue stripe on the positive side
Description:
| Model | Conductor | Insulator |
| AWG | No. of Conductor | Specification | Nom. Thickness | Diameter |
| SPT-1 | 20 | 2 | 26/0.16 | 0.76 | 2.5×5.0 |
| 3 | 26/0.16 | 0.76 | 2.5×7.4 |
| 18 | 2 | 41/0.16 | 0.76 | 2.7×5.4 |
| 3 | 41/0.16 | 0.76 | 2.7×8.0 |
| SPT-2 | 18 | 2 | 41/0.16 | 1.14 | 3.5×7.0 |
| 3 | 41/0.16 | 1.14 | 3.5×8.7 |
| 16 | 2 | 65/0.16 | 1.14 | 3.7×7.4 |
| 3 | 65/0.16 | 1.14 | 3.7×9.6 |
| SPT-3 | 18 | 2 | 41/0.16 | 1.52 | 4.5×9.0 |
| 3 | 41/0.16 | 1.52 | 4.4×10.3 |
| 16 | 2 | 65/0.16 | 1.52 | 3.7×7.4 |
| 3 | 65/0.16 | 1.52 | 4.8×11.2 |
| 14 | 2 | 41/0.254 | 2.03 | 6.3×12.6 |
| 3 | 41/0.254 | 2.03 | 6.3×13.5 |
| 12 | 2 | 65/0.254 | 2.41 | 7.6×15.2 |
| 3 | 65/0.254 | 2.41 | 7.6×15.8 |
| 10 | 2 | 65/0.32 | 2.79 | 9.1×18.2 |
| 3 | 65/0.32 | 2.79 | 9.1×18.8 |
| Nominal cross-section(mm2) | conductor(No./mm) | O.D(mm) | O.D of cable (mm) |
| 2x0.5 | 28/0.15 | 0.8 | 3.0*6.0 |
| 2x0.75 | 42/0.15 | 0.8 | 3.2*6.4 |
| 2x1 | 32/0.20 | 0.8 | 3.3*6.6 |
| 2x1.5 | 48/0.20 | 0.9 | 3.8*7.6 |
| 2x2.5 | 49/0.25 | 0.9 | 3.9*7.8 |
| 2x4 | 56/0.30 | 1 | 4.6*9.2 |
Applications:
The speaker ON cable connectors are the industry standard
connectors for amplifier / loudspeaker
connections.
Competitive Advantage:
1. Professional manufacturer, 100% tested, free samples are
available.
2. OEM service with 10-years’experience, manufacturing according to
your requests.
3. Physical Stock for fast delivery
4. Customers solutions in days, not weeks.
5. Warmly services with careful attentions.
6. Specific inquiry will be responded within 24 hours.
7. Delivery Time: 3-5 days for samples; 5-25 days for batch goods.
Shipping Details:
1. By air
Your order will be delivered by DHL, FEDEX, UPS, TNT, or other
International Express. It's up to you to choose your suitable
express company. It normally takes 3-7 days to arrive at your
destination. Surcharge will be charged if your destination is
remote area.
2. By sea
Shipments will be operated under FOB conditions.
