UTP 32AWG Fluke Testing Electric Wire Cable Cat6 Patch Cord Gold
Plated 1M - 20M
Specification:
| 1 | Construction | material | 24AWG*4P(7/0.20)
bare copper |
| 2 | Insulation | material | PE |
| 3 | Insulation Dia | Outer Dia(mm) | 0.97±0.05 |
| 4 | Twister pair | spec | 4 pair with PE cross |
| 5 | Cable Dia | Outer Dia(mm) | 6.0±0.2 |
| 6 | Jacket | material | LSZH |
| 7 | RJ45 plug | spec | 8P8C 50U U-TYPE 94V-0 |
| 8 | Length | include RJ45 plug | Stranded length+(0-100mm) |
Description:
1. Cat 5E Cat6 Cat6A Cat7 Patch cord Meet ANSI/TIA/EIA 568B.2
2. Suitable for 10BaseT and 100BaseTX Fast Ethernet and 1000BaseT
Gigabit Ethernet connections
3. UTP Unshielding Twisted Pair or STP, FTP, SSTP
4. CM PVC Jacket/ LSZH Jacket. CMR & CMP is optional.
5. 24 AWG 4 pair Stranded Core
6. 3~50µ Gold Plated CAT 6 Staggered RJ45 Plugs with Molded
Snagless Boots on Each End
7. UL® listed ETL® Verified, 100 tested
8. Factory Manufactured and Sealed in Plastic Bag
9. With or without reports made to the order
| Electrical Characteristics |
| 1 | Conductor resistance | ≤5Ω |
2 | Insulation resistance | ≥10MΩ |
| 3 | Insulation ressistance by mated connectors,measured between
teminations | >500MΩ |
| 4 | Insulation resistance by mated connectors | ≥AC1000V |
| 5 | Characteristics impedance | 100+-6 Ohm@1-250MHz |
| 6 | Contactresistance | 20m Ohm max |
| 7 | Resistance unbalance | 2%max |
| 8 | Voltage rating | 75Vac max |
| 9 | Dielectric strength | 1000 volts/1 minute min rms |
| 10 | Ampacity | 1.0 Amps max |
| 11 | Coupling attenuation | 40dB min @30-100 MHz 40-20log (f/100)@100-250 MHz |
| 12 | Transfer impedance | N/A |
| 13 | Durability | ≥1200 matching cycles |
| 14 | Cable to plug tensile strength | 9 Kgf (90N) min |
| 15 | Pulling force | 1 Kgf (10N) max |
| 16 | Performance test | 100% Component tests by FLUKE DTX |
Environmental
Characteristic | Transportation and storage [℃] : -25℃ to +70℃ |
| Installation temperature [℃] : -10℃ to +50℃ |
| Operating temperature[℃] : -25℃ to +60℃ |
Chemical Characteristic | No harmful substances, fully comply with EU Directive 2011/65/EU
(RoHS-2). |
Applications:
1. Cat 5E Cat6 Cat6A Cat7 Patch cord is used in network application
such as 10Base-T, 100Base-T, 1000Base-T Ethernet technology to
100meters, and have been designed specifically for Gigabit Ethernet
applications (Gigabit over copper).
2. They perform at high-data transfer rates, and work with ATM and
gigabit speed products.

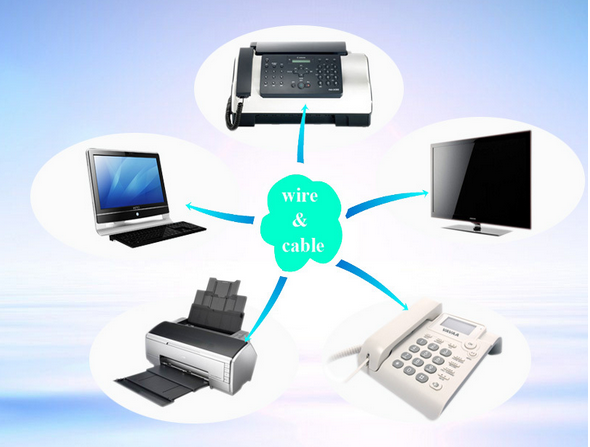

3. Ideal for connecting Computers,Hubs, Switches, Printer servers,
Patch panels, etc.
Competitive Advantage:
1. Professional design team provide special design for ur cable and
unique design for both opp bag and carton box.
2. Experienced workers and QC team ensure high quality and 100%
testing before shipment, and no NG PARTS outflowed.
3. Large-scale production capacity and competitive price promise
timely delivery and advantageous position in the market.
Shipping Details:
1. By air
Your order will be delivered by DHL, FEDEX, UPS, TNT, or other
International Express. It's up to you to choose your suitable
express company. It normally takes 3-7 days to arrive at your
destination. Surcharge will be charged if your destination is
remote area.
2. By sea
Shipments will be operated under FOB conditions.
