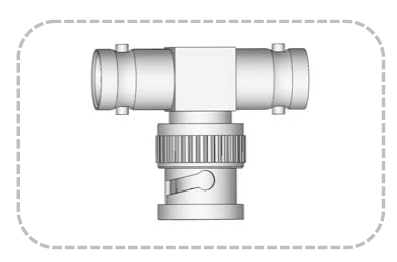

Nickel / Gold Plated BNC T Connector Double Female To Male Type Adaptor

    Buy cheap Nickel / Gold Plated BNC T Connector Double Female To Male Type Adaptor from wholesalers

    Buy cheap Nickel / Gold Plated BNC T Connector Double Female To Male Type Adaptor from wholesalers
    • Buy cheap Nickel / Gold Plated BNC T Connector Double Female To Male Type Adaptor from wholesalers

    Nickel / Gold Plated BNC T Connector Double Female To Male Type Adaptor

    Ask Lasest Price
    Brand Name : SINOWELL
    Model Number : VK20069
    Certification : RoHs; CE
    Price : $0.28/pc--$0.5/pc
    Payment Terms : D/P; T/T; Western Union
    Supply Ability : 10000pcs per day
    Delivery Time : Depend on your quantity
    • Product Details
    • Company Profile

    Nickel / Gold Plated BNC T Connector Double Female To Male Type Adaptor

    Nickel / Gold Plated BNC T Connector Double Female To Male Type Adaptor


    Specifications:


    BNC Connector

    1. reasonable price

    2. manufacturer factory

    3. We are able to supply various types of connector according to clients’ requirement

    4. Samples can be supplied for testing (for free)

    5. Tried order is available

    6. in stock


    Description:

    T-type RF coaxial adapter connector with bnc male to double female

    ELECTRICAL DATA
    Impedance50Ω
    Frequency range (for connector interface)DC~4GHz
    Dielectric withstanding Voltage (at sea level)1500V rms, 50Hz (depending on cable)
    Working voltage (at sea level)500V rms, 50Hz (depending on cable)
    Insulation resistance≥ 5000 mΩ
    Contact resistancecentre contact≤1.5mΩ
    outer contact: ≤ 1 mΩ
    RF-leakage (between 2÷3 GHz)≥55 dB
    MECHANICAL DATA
    Coupling nut torque7Ncm--28Ncm / 0.6 in.lbs--2.5 in.lbs
    Coupling nut retention force≥450N / 101.2 lbs
    Contact captivation≥27N / 6.1 lbs
    Durability (matings)≥500
    ENVIRONMENTAL DATA
    Temperature range-65°C to +165°C
    MATERIAL DATA
    BodiesBrass--Ni plating
    Pin contactsBrass--Au / Ag plating
    Socket contactsCopper--beryllium Au / Ag plating
    Crimp ferrulesCopper alloy--Ni plating
    InsulatorPTFE
    GasketsSilicone rubber


    Competitive Advantage:

    1. Best quality and service for any orders.
    2. Every step of your order will be informed to you in time.
    3. Please feel free to tell us what's the problem you met anytime you need.

    Applications:

    RF

    Shipping Details:


    1. By air

    Your order will be delivered by DHL, FEDEX, UPS, TNT, or other International Express. It's up to you to choose your suitable express company. It normally takes 3-7 days to arrive at your destination. Surcharge will be charged if your destination is remote area.


    2. By sea

    Shipments will be operated under FOB conditions.
