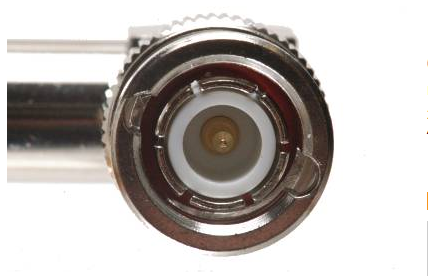

Brass Zinc Copper BNC Male Right Angle Crimp Type Connector For RG6 / U RG58 / U RG59 / U Coaxial Cable

    Buy cheap Brass Zinc Copper BNC Male Right Angle Crimp Type Connector For RG6 / U RG58 / U RG59 / U Coaxial Cable from wholesalers

    Buy cheap Brass Zinc Copper BNC Male Right Angle Crimp Type Connector For RG6 / U RG58 / U RG59 / U Coaxial Cable from wholesalers
    • Buy cheap Brass Zinc Copper BNC Male Right Angle Crimp Type Connector For RG6 / U RG58 / U RG59 / U Coaxial Cable from wholesalers

    Brass Zinc Copper BNC Male Right Angle Crimp Type Connector For RG6 / U RG58 / U RG59 / U Coaxial Cable

    Ask Lasest Price
    Brand Name : SINOWELL
    Model Number : VK20016
    Certification : RoHs; CE
    Price : $0.11/pc--$0.99/pc
    Payment Terms : D/P; T/T; Western Union
    Supply Ability : 10000pcs per day
    Delivery Time : Depend on your quantity
    • Product Details
    • Company Profile

    Brass Zinc Copper BNC Male Right Angle Crimp Type Connector For RG6 / U RG58 / U RG59 / U Coaxial Cable

    Brass Zinc Copper BNC Male Right Angle Crimp Type Connector For RG6 / U RG58 / U RG59 / U Coaxial Cable

    Specifications:

    Characteristic Impedance50ohm, 75ohm
    Frequency Range0-4GHz
    Working Voltage500 VRMS(max at sea level)
    Dielectric Withstanding Voltage1500 VRMS(min at sea level)
    VSWR≤1.30
    Contact ResistanceInner: 1.5 milliohms(max)
    Outer: 1 milliohms(max)
    Insulation Resistance5000 megohms(min)
    Material Data
    Durability Mating500 Cycles min.
    Material Data
    Connector PartsMaterialsPlating Finish
    BodyBrassNickel
    Male PinBrassGold
    InsulatorsPTFEN/A
    FerrulesCopper alloyNickel
    Environmental Data
    Temperature Range-65~+165℃


    Description:
    1. Temperature range: -55~+155°C
    2. Impedance: 50 Ω Or 75 Ω
    3. Frequency range (required for the application is 2,4 GHz): 0~2 GHz

    4. Voltage rating: 1500V
    5. Contact resistance of center and outer conductor: center ≤ 1.5 mΩ outer ≤ 1 mΩ
    6. VSWR: Straight ≤ 1.22 , Right angle ≤ 1.30
    7. Durability (in cycles): 500 cycles
    8. Dielectric withstanding voltage: ≥ 5000 MΩ


    Competitive Advantage:

    1. Best quality and service for any orders.
    2. .Every step of your order will be informed to you in time.
    3. Please feel free to tell us what's the problem you met anytime you need.



    Applications:
    RF

    Shipping Details:

    1. By air
    Your order will be delivered by DHL, FEDEX, UPS, TNT, or other International Express. It's up to you to choose your suitable express company. It normally takes 3-7 days to arrive at your destination. Surcharge will be charged if your destination is remote area.


    2. By sea
    Shipments will be operated under FOB conditions.
